Comparison of Single-User Toilet Room Layouts

ADA 1991 Standards

1991 standard minimum with out swinging door

Plan-1A: 1991 Standards Minimum with Out-Swinging Door

5’-0” x 7’-3” 36.25 Square Feet

This plan shows a typical example of a single-user toilet room that meets the minimum requirements of the 1991 Standards. The size of this space is determined by the minimum width required for the water closet and lavatory between the side walls, the minimum wheelchair turning space, and the space required for the out-swinging door. A lavatory with knee space can overlap the clear floor space required for the water closet provided that at least 36 inches of clearance is maintained between the side wall next to the water closet and the lavatory (see section 4.16.2 and Fig. 28 of the 1991 Standards). A wheelchair turning space meeting section 4.2.3 of the 1991 Standards must be provided. The size of this room requires that the entry door swing out. The room would be larger if the door were in-swinging.

2010 Standards

2010 standard minimum with out-swinging door

Plan-1B: 2010 Standards Minimum with Out-Swinging Door

7’-0” x 5’-0” • 35.00 Square Feet

This plan shows a typical example of a single-user toilet room that meets the minimum requirements of the 2010 Standards. Features include: five-foot minimum width between the side wall of the water closet and the lavatory; 60-inch minimum circular wheelchair turning space; and 36-inch by 48-inch clear maneuvering space for the out-swinging entry door. Section 604.3.1 of the 2010 Standards requires a floor clearance at a water closet that is a minimum of 60 inches wide by 56 inches deep regardless of approach. Section 604.3.2 prohibits any other plumbing fixtures from being located in this clear space, except in residential dwelling units. The 2010 Standards, at section 304.3, allows the turning space to extend into toe and knee space provided beneath fixtures and other elements. Required maneuvering space for the entry door (inside the room) must be clear of all fixtures. If the door had both a closer and latch, section 404.2.4.1 and Figure 404.2.4.1(c) require additional space on the latch side.

This layout is three point five percent (3.5%) smaller than the accompanying Plan-1A: 1991 Standards Minimum with Out-Swinging Door example.



Comparison of Single-User Toilet Room Layouts





2010 Standards

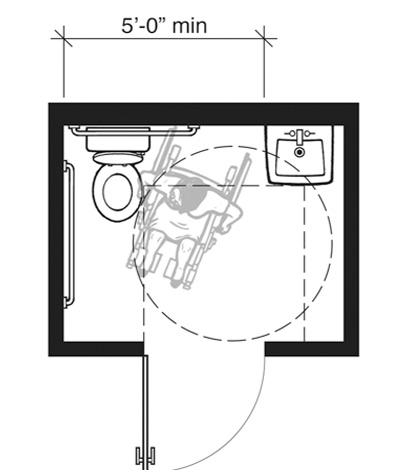

Plan-1C: 2010 Standards Minimum with Out-Swinging Door (entry door has both closer and latch)

Plan-1C: 2010 Standards Minimum with Out-Swinging Door

(entry door has both closer and latch)

7’-0” x 5’-6” 38.50 Square Feet

This plan shows the same typical features of a single-user toilet room that meets the minimum requirements of the 2010 Standards as Plan-1B does except the entry door has both a closer and latch. Because the door has both a closer and latch, a minimum additional foot of maneuvering space is required on the latch side (see section 404.2.4.1 and Figure 404.2.4.1(c) of the 2010 Standards).

This layout is six point two percent (6.2%) larger than the accompanying Plan-1A: 1991 Standards Minimum with Out-Swinging Door example.



Comparison of Single-User Toilet Room Layouts

1991 Standards Plan-2A: 1991 Standards Minimum  with In-Swinging Door

Plan-2A: 1991 Standards Minimum
with In-Swinging Door

5’-0” x 8’-6” 42.50 Square Feet

This plan shows a typical example of a single-user toilet room that meets the minimum requirements of the 1991 Standards. Depending on the width of the hallway and other circulation issues, it can be preferable to swing the entry door into the toilet room. Businesses and public entities typically prefer to have an in-swinging door. The in-swinging door increases overall room size because it cannot swing over the required clear floor space at any accessible fixture, (see section 4.22.2 of the 1991 Standards). This increases the room depth from Plan-1A. The door is permitted to swing over the required turning space shown as a 60-inch circle.

2010 Standards

Plan-2B: 2010 Standards Minimum  with In-Swinging Door

Plan-2B: 2010 Standards Minimum with In-Swinging Door

7’-0” x 6’-6” 45.50 Square Feet

This plan shows a typical example of a single-user toilet room that meets the minimum requirements of the 2010 Standards when the entry door swings into the room. In the 2010 Standards an exception allows the entry door to swing over the clear floor spaces and clearances required at the fixtures if a clear floor space complying with section 305.3 (minimum 30 inches by 48 inches) is provided outside the arc of the door swing, section 603.3.3 exception 2. The required maneuvering space for the door, section 404.2.4.1 and Figure 404.2.4.1(a), also is a factor in room size. This clear space cannot be obstructed by the plumbing fixtures. Note that this layout provides more space for turning when the door is closed than Plan-1B.

This layout is seven percent (7%) larger than the
accompanying Plan-2A: 1991 Standards Minimum with
In-Swinging Door example.



Comparison of Single-User Toilet Room Layouts



2010 Standards

Plan-2C: 2010 Standards Minimum  with In-Swinging Door

Plan-2C: 2010 Standards Minimum
with In-Swinging Door

7’-0” x 6’-6” 40.00 Square Feet

(plumbing chase not included)

This plan shows the same typical features of a single-user toilet room that meets the minimum requirements of the 2010 Standards as Plan-2B when the entry door swings into the room. Note that this layout also provides more space for turning when the door is closed than Plan-1B.

This layout is six point two five percent (6.25%) smaller than the accompanying Plan-2A: 1991 Standards Minimum with In-Swinging Door example.



Comparison of Single-User Toilet Room Layouts



1991 Standards and 2010 Standards

Plan-3: Meets Both 1991 Standards and 2010 Standards

Plan-3: Meets Both 1991 Standards and 2010 Standards

7’-0” x 5’-9” 40.25 Square Feet

This plan shows an example of a single-user toilet room that meets the minimum requirements of both the 1991 Standards and 2010 Standards. A T-shaped turning space has been used (see Fig. 3(a) of the 1991 Standards and Figure 304.3.2 of the 2010 Standards) to maintain a compact room size. An out-swinging door also minimizes the overall layout depth and cannot swing over the required clear floor space or clearance at any accessible plumbing fixture.

This layout is eleven percent (11%) larger than the Plan-1A: 1991 Standards Minimum with Out-Swinging Door example shown at the beginning of these plan comparisons.



Comparison of Single-User Toilet Room “Pairs” With Fixtures Side-by-Side

1991 Standards

Plan-1A Pair: 1991 Standards with Out-Swinging Doors

Plan-1A Pair: 1991 Standards with Out-Swinging Doors

Two 5’-0” x 7’-3” Rooms –
72.50 Square Feet Total

2010 Standards

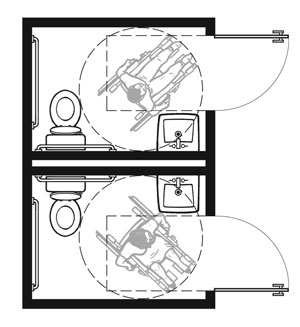

Plan-1B Pair: 2010 Standards with Out-Swinging Doors

Plan-1B Pair: 2010 Standards with
Out-Swinging Doors

Two 7’-0” x 5’-0” Rooms-
70.00 Square Feet Total

These plans show men’s/women’s room configurations using Plans 1A and 1B.
Comparison of Single-User Toilet Room “Pairs” With Fixtures Side-by-Side

1991 Standards

2010 Standards

Plan-2C Pair: 2010 Standards with In-Swinging Doors

Plan-2C Pair: 2010 Standards with
In-Swinging Doors

Two 7’-2” x 6’-6” Rooms -
82.00 Square Feet Total

This plan shows a men’s/women’s room
configuration using Plan 2C.
